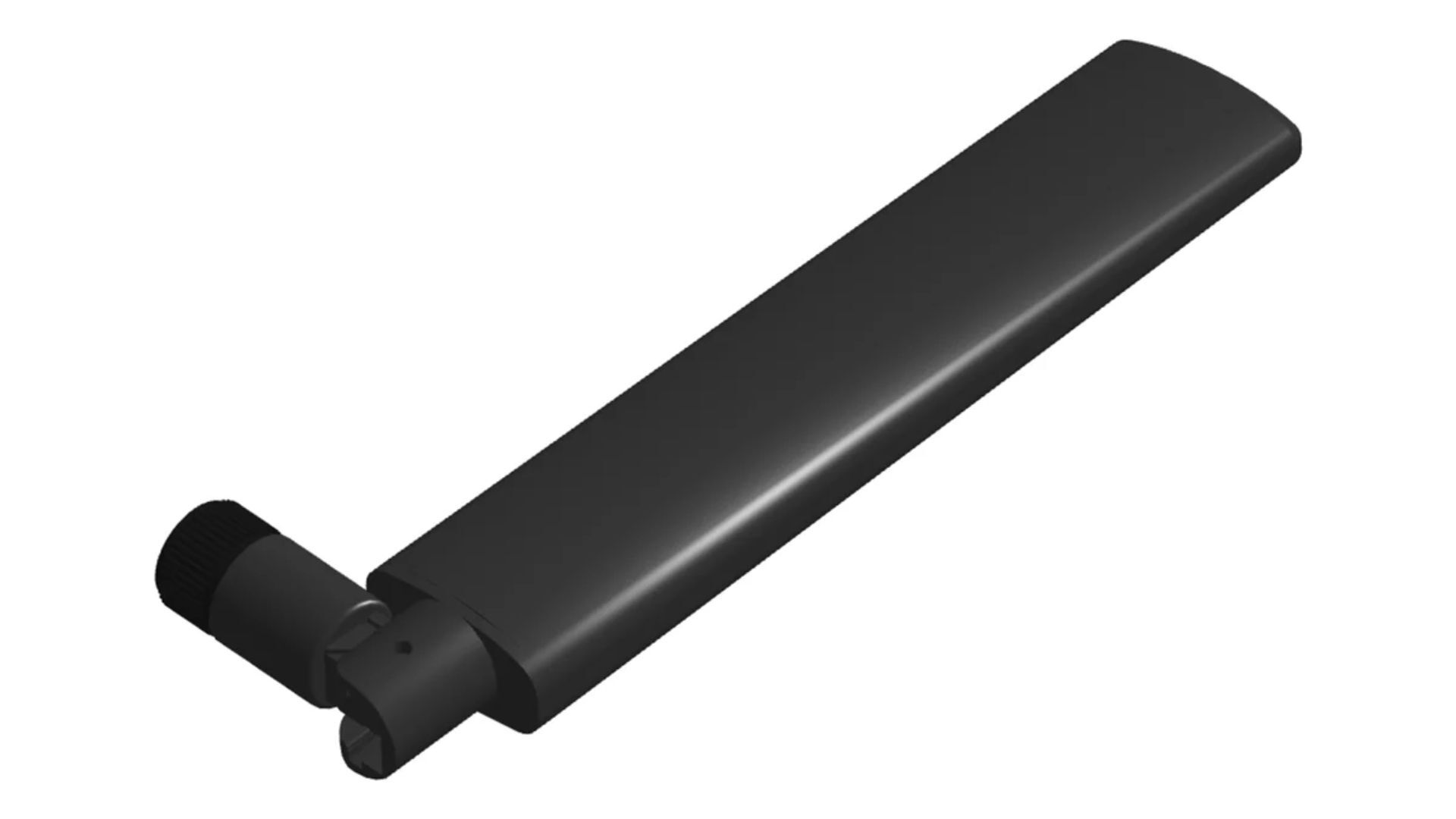

The Antenna Company AC86000 tilt/swivel blade antennas provide robust indoor/outdoor, omnidirectional antenna capability for all cellular solutions from 617 MHz to 5925 MHz. The hinged base allows for fixed positioning of the antenna at 0 degrees (straight), 45 degrees and 90 degrees (right angle) to support use in many configurations from single-antenna (SISO) and MIMO fixed wireless, to IoT applications. The swivel connector allows for easy installation and firm positioning for optimal performance.
The 152 mm long (straight) by 25 mm maximum width provides appropriate size for performance on both metal enclosures or in free space including non-metallic enclosures, while not being so large as to interfere with the deployment or dominating equipment aesthetics. Additionally, beyond the capability of most blade antennas, AC86000 blade antennas support IP67 and IP65 ingress protection and UV-resistant materials for outdoor applications.
